MESTEK Digital Clamp Meter 600A AC Current 600V AC/DC Voltage Capacitance Measurement Tester Multimeter Measurement Tool – CM83A Manual Range

Price:
$14.11

Free Shipping

For just $14.11 , buy MESTEK Digital Clamp Meter 600A AC Current 600V AC/DC Voltage Capacitance Measurement Tester Multimeter Measurement Tool – CM83A Manual Range from the wholesale webshop online.

Product Description

MESTEK Digital Clamp Meter 600A AC Current 600V AC/DC Voltage Capacitance Measurement Tester Multimeter Measurement Tool – CM83A Manual Range

Made of fine quality material, practical, easy to operate and use, wide application range, has a long service life.

  • Useful function, fast response, simple operation, anti-burn design
  • CM83 series digital clamp meter meets different levels of measurement

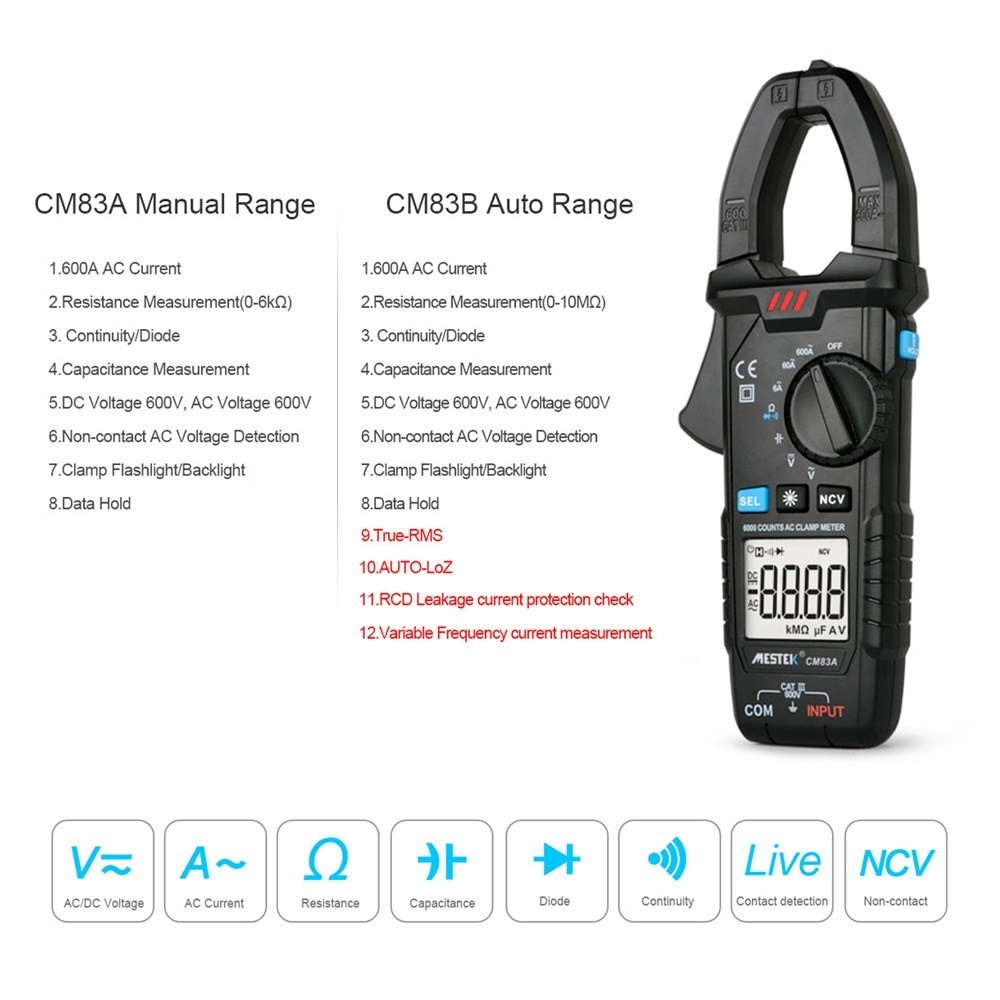

  • CM83A function: manual range, 600A AC current, resistance measurement (0-6KΩ), continuity/diode, capacitance measurement, DC voltage 600V, AC voltage 600V, NCV non-contact AC voltage detection, clamp flashlight/backlight, data hold
  • CM83B function: auto range, 600A AC current, resistance measurement (0-10MΩ), continuity/diode, capacitance measurement, DC voltage 600V, AC voltage 600V, NCV non-contact AC voltage detection, clamp flashlight/backlight, data hold, True-RMS, AUTO-LoZ, RCD leakage current protection check, variable frequency current measurement
  • Can be used in a variety of test environments: electromechanical maintenance, air conditioning repairing, electrical maintenance, education and training

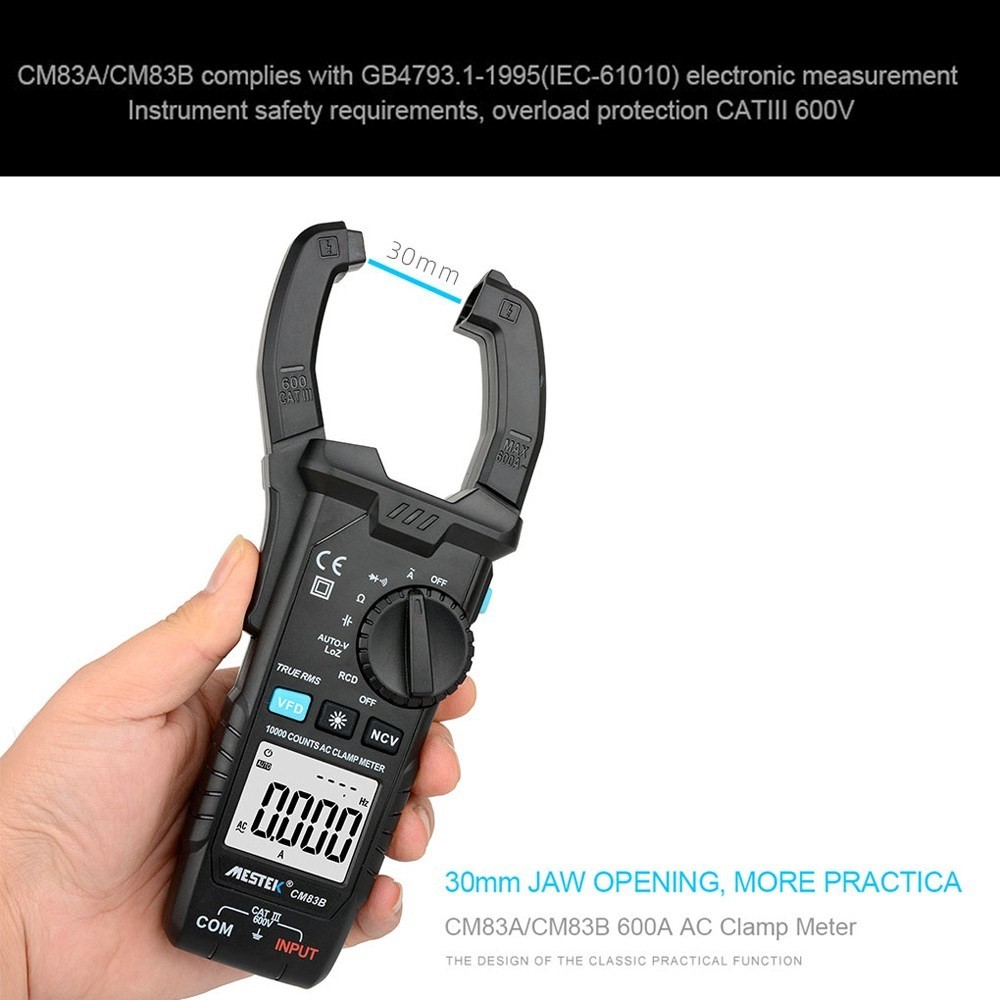

  • 30mm jaw opening, more practical

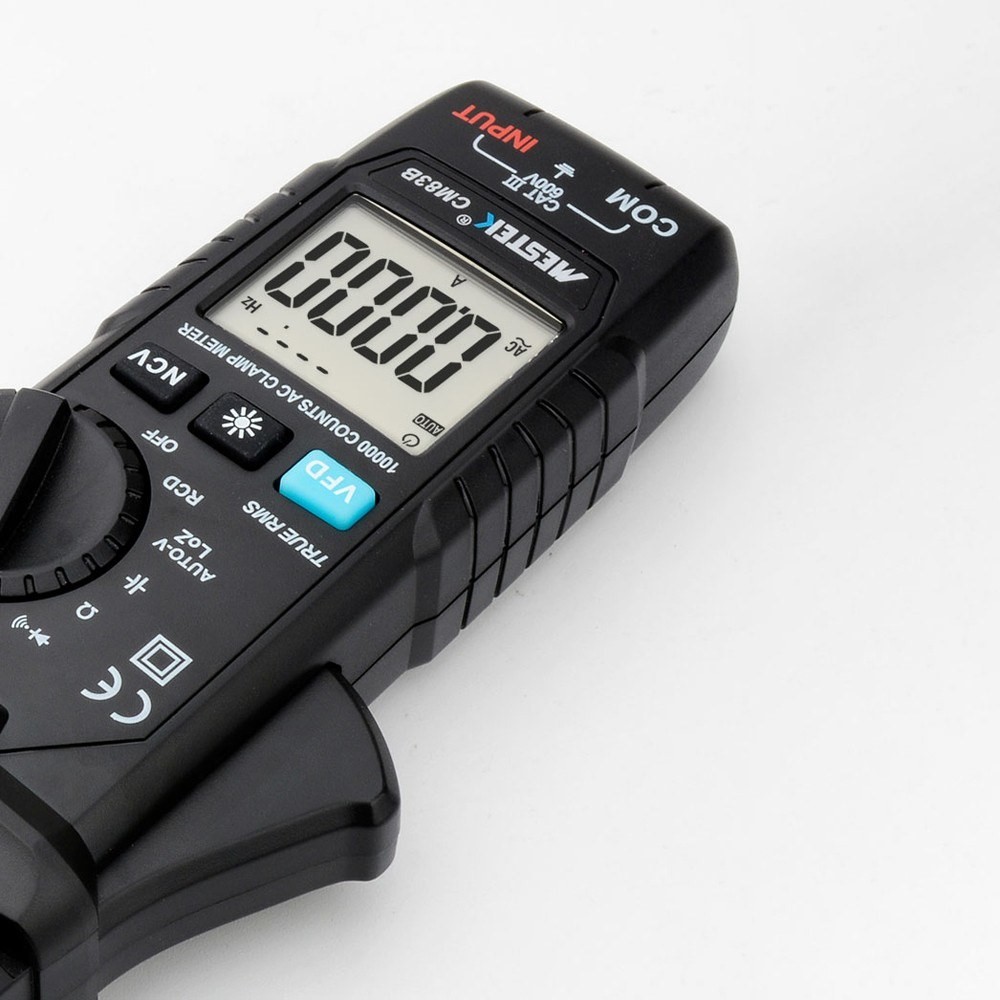

  • LCD large screen, high-definition digital display, fine quality backlight board with high contrast and full screen backlight design

Specifications:

  • Material: ABS

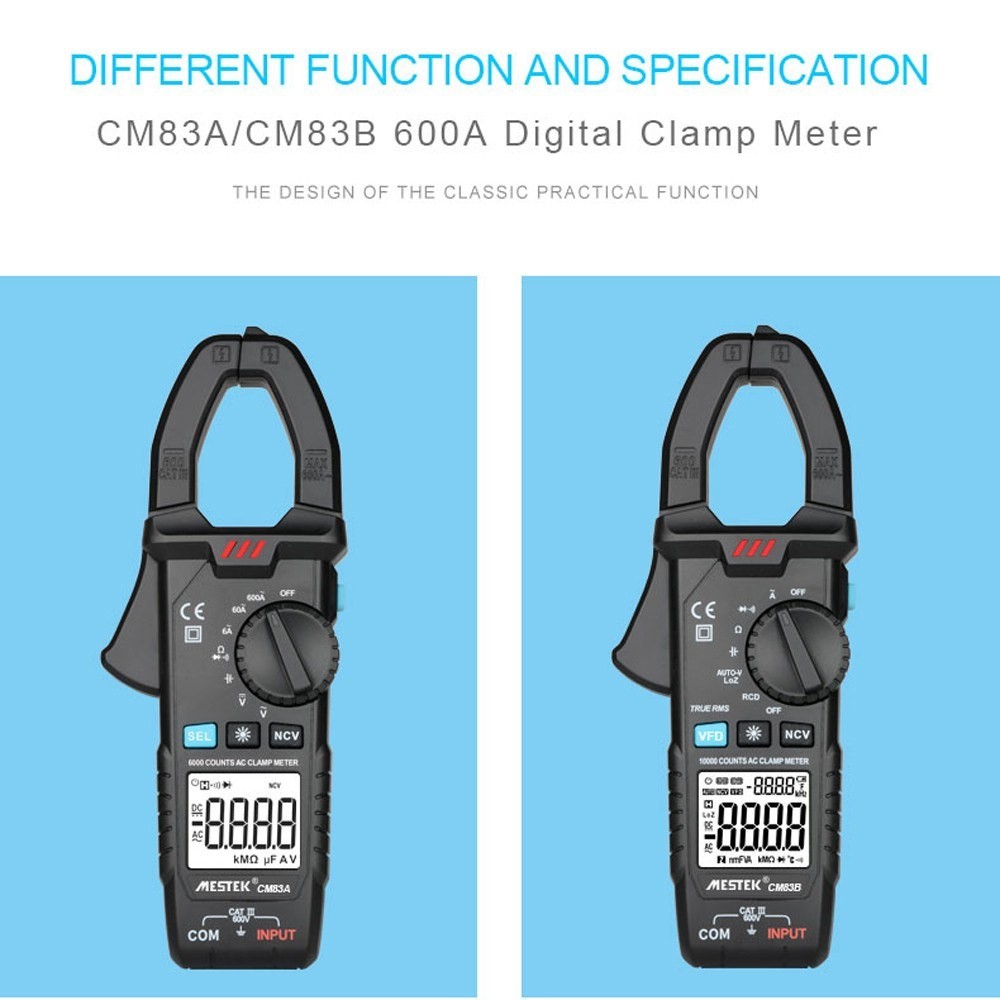

  • Model: CM83A, CM83B (optional)
  • AC current (A):
  • CM83A: 0~6A/60A/600A
  • CM83B: 0~1A/10A/100A/600A
  • Accuracy range: ±3.0%+6digits
  • AC voltage (V):
  • CM83A: 0~100V/600V
  • CM83B: 0~100V/600V
  • Accuracy range: ±1.0%+3digits
  • DC voltage (V):
  • CM83A: 0~100V/600V
  • CM83B: 0~100V/600V
  • Accuracy range: ±0.8%+3digits
  • Resistance (Ω):
  • CM83A: 0~6000Ω
  • CM83B: 0~1KΩ/10KΩ/100KΩ/10MΩ
  • Accuracy range: ±1.2%+3digits
  • Capacitance:
  • CM83A: 0~600μF/6000μF
  • CM83B: 0~600μF/6000μF
  • Accuracy range: ±4.0%+5digits
  • Display counts:
  • CM83A: 6000 counts
  • CM83B: 10000 counts
  • Manual/auto range:
  • CM83A: manual range
  • CM83B: auto range
  • Continuity/diode:
  • CM83A: auto distinguish
  • CM83B: auto distinguish
  • NCV (non-contact):
  • CM83A: yes
  • CM83B: yes
  • Clamp flashlight:
  • CM83A: yes
  • CM83B: yes
  • Backlight:
  • CM83A: yes
  • CM83B: yes
  • Auto power off:
  • CM83A: yes
  • CM83B: yes
  • Data hold:
  • CM83A: yes
  • CM83B: yes
  • True-RMS:
  • CM83A: no
  • CM83B: yes
  • RCD test:
  • CM83A: no
  • CM83B: leakage current switch protection test
  • AUTO-VLoz:
  • CM83A: no
  • CM83B: low impedance voltage measurement
  • VFD:
  • CM83A: no
  • CM83B: variable frequency current test
  • Frequency:
  • CM83A: no
  • CM83B: test frequency with AC current range
  • Working environment: 0~40 Celsius Degree (32~104 Fahrenheit); <80%RH
  • Storage temperature: -10~50 Celsius Degree (14~122 )Fahrenheit; <70%RH
  • Battery: 2 * AAA battery (not included)
  • Item weight: 380g / 13.4ounce

Package included:

  • 1 x Clamp Meter
  • 1 x Pair of 10A Probe
  • 1 x Bag
  • 1 x English and Chinese Use Manual

Specifications

Brand N/A
ColorStyle A
Gross Weight 0.500kg
Volume Weight 0.118kg
Package Length 20.000cm
Package Width 7.500cm
Package Height 3.500cm
One Package Weight 0.446kg
With Retail Packaging No
