MACH3 Controller USB MACH3 100Khz Motion Controller Card Breakout Board for CNC Engraving Servo Stepper Motor

Price:
$14.24

Free Shipping

For just $14.24 , buy MACH3 Controller USB MACH3 100Khz Motion Controller Card Breakout Board for CNC Engraving Servo Stepper Motor from the wholesale webshop online.

Product Description

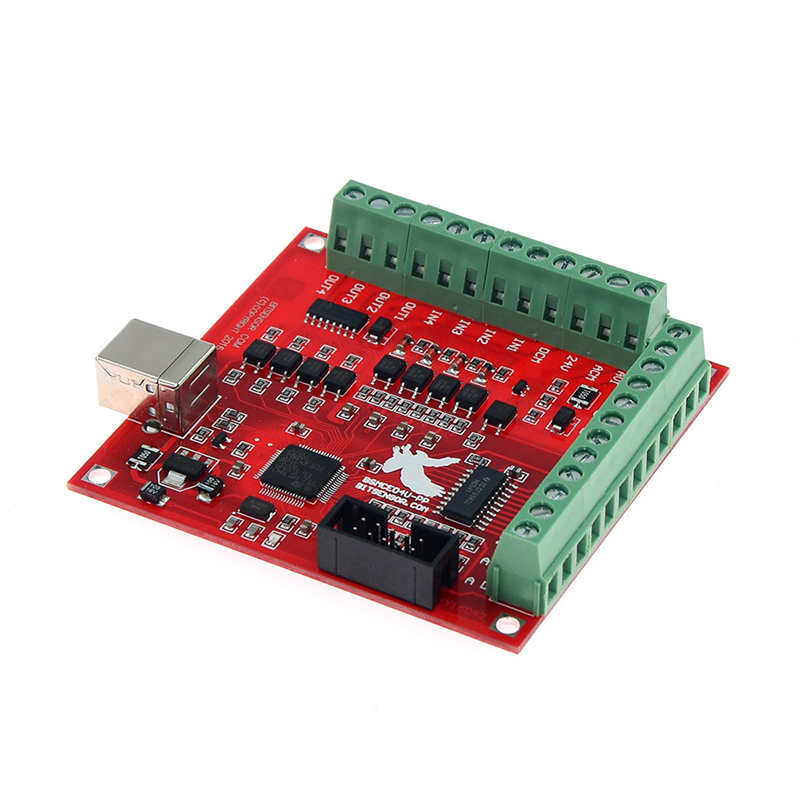

MACH3 Controller USB MACH3 100Khz Motion Controller Card Breakout Board for CNC Engraving Servo Stepper Motor

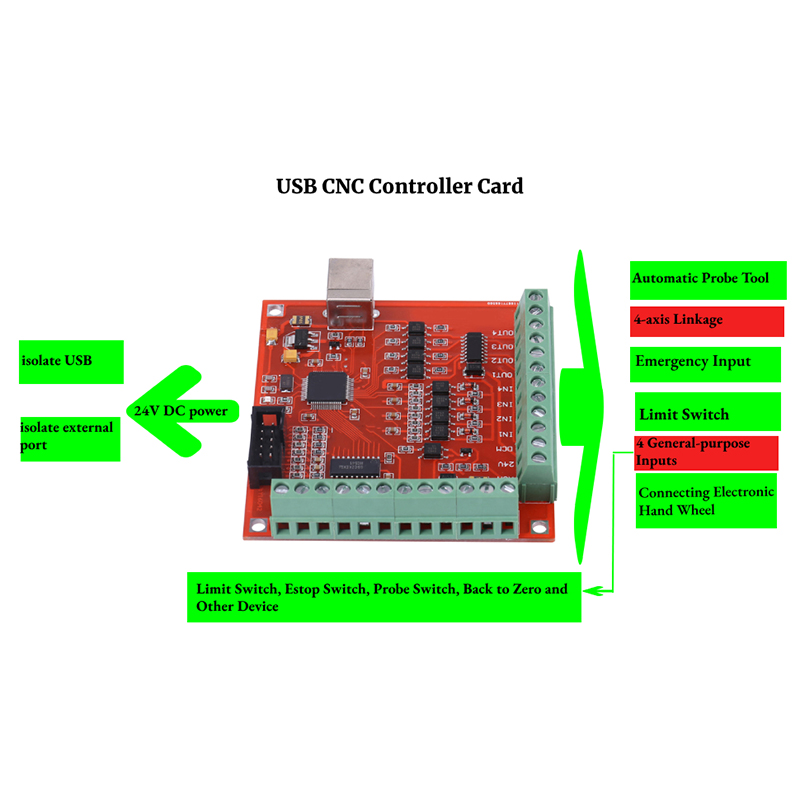

  • Functions: The function of this motion control card includes that it supports an automatic probe tool, emergency input, limit switch, and supports for connecting electronic hand wheel

  • 4-axis Linkage: The USB interface board supports 4-axis linkage, you can connect four stepper motor drives or servo drives. 4 general-purpose inputs, you can connect the limit switch, estop switch, probe switch, back to zero

  • Use: The maximum step-pulse frequency of the motion control card is100KHz, which is very suitable for CNC Engraving, Servo Motor, Stepper Motor Servo motor

  • Advantage: The motion controller needs to use external 24V DC power to isolate USB and external ports, and to make the system more stable. And it has a 0-10V output port. You can use MACH3 software to control the spindle motor speed

  • Drive Output Interface: The four general-purpose isolated relay drive output interfaces can drive four relays for controlling the spindle starts, forward rotating and reverse rotating pumps and other devices

Specification:

  • Product: MACH3 controller

  • Material: PCB

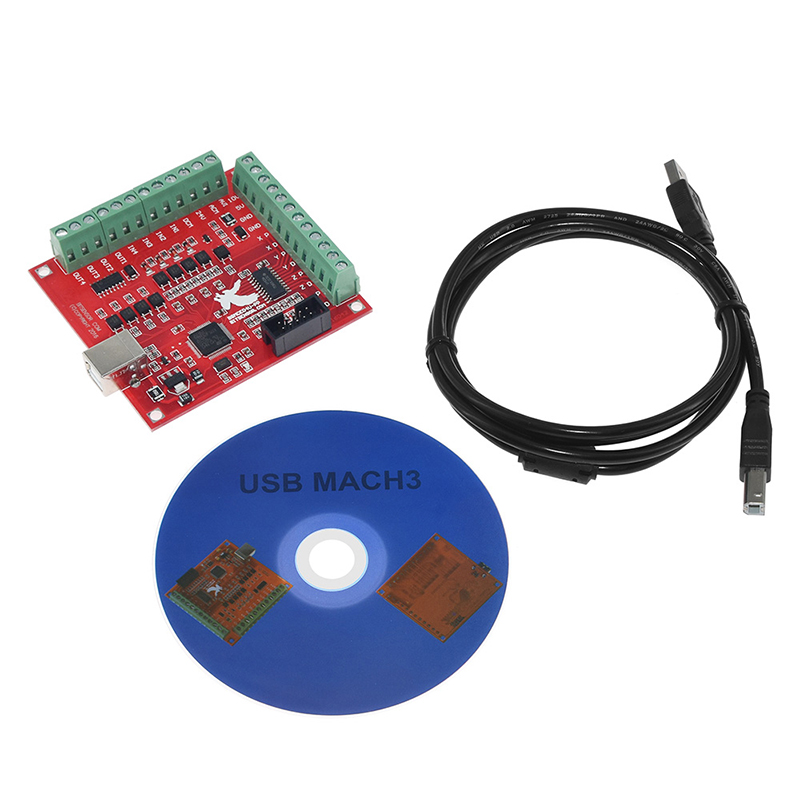

Package included:

  • 1 x MACH3 Controller
  • 1 x USB Cable
  • 1 x CD

Specifications

Brand N/A
Retail Packaging Simple PP Bag
Gross Weight 0.168kg
Volume Weight 0.181kg
Package Length 18.000cm
Package Width 15.000cm
Package Height 3.000cm
One Package Weight 0.150kg
With Retail Packaging No
