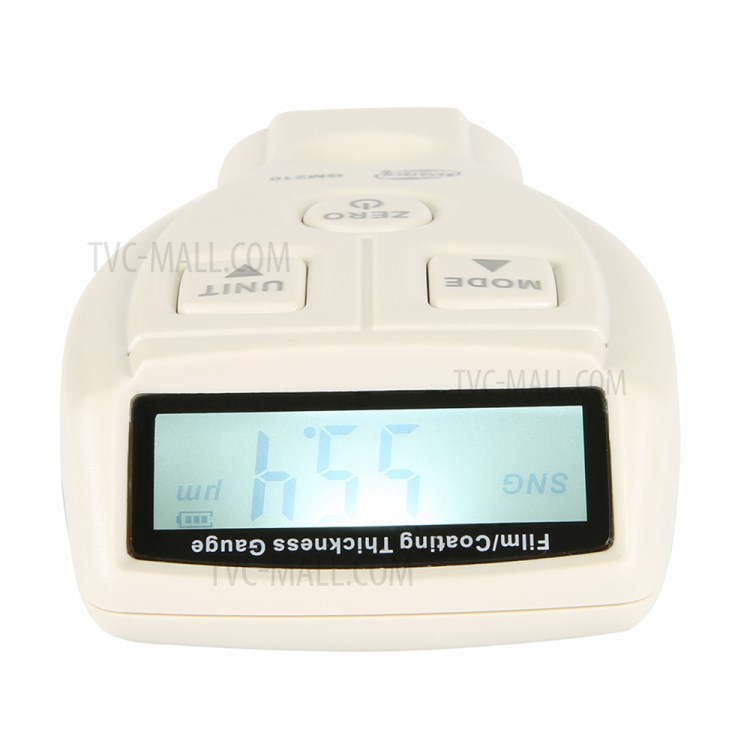

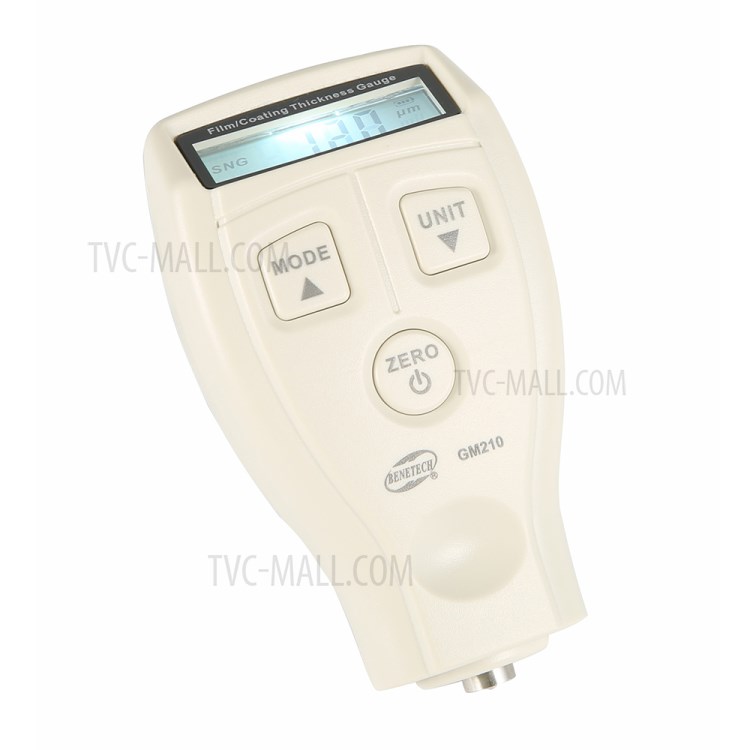

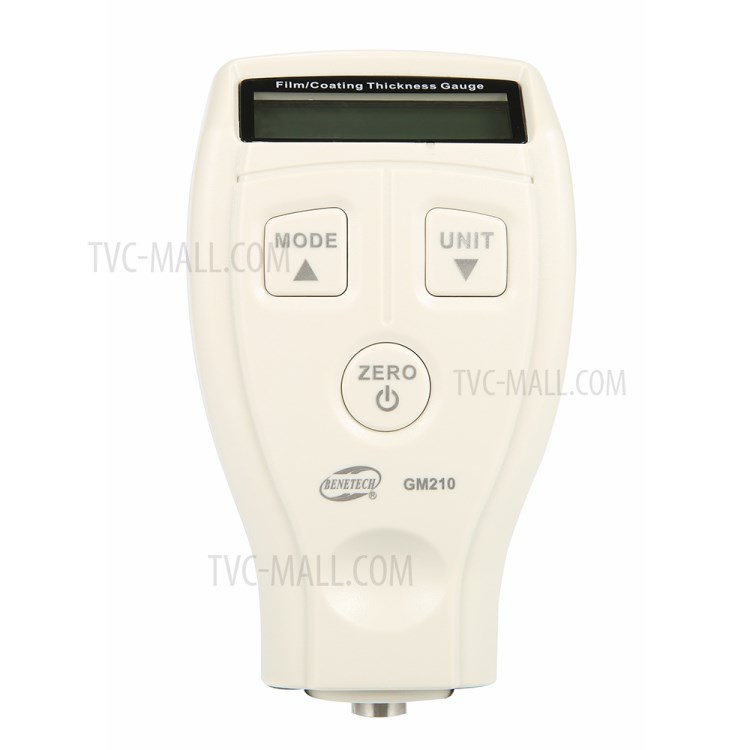

BENETECH GM210 Mini Digital Coating Thickness Gauge 0-1800um Paint Film Thickness Measurement Tool
Price:
$64.46
Product Description
BENETECH GM210 Mini Digital Coating Thickness Gauge 0-1800um Paint Film Thickness Measurement Tool
-
This product is widely applied in manufacturing, metalworking, chemical industry, commodity inspection and other fields
-
The product is a stable, safe and reliable coating thickness gauge
-
Ergonomics design. Simple key operation and comfortable hand feeling, easy and fast for users to use
-
For fast, accurate and nondestructive measurement of the thickness of non-magnetic coatings(such as paint, electroplated coating and film) on magnetic metal substrates
Specification:
-
Measuring range: 0~1800m/0~70.9mil
-
Resolution: 0.1μm/1μm/0.1mil
-
Measurement error: (3%H+1m)
-
Min. diameter of substrate: 12mm
-
Min. thickness of substrate: 0.5mm
-
Min. curvature radius of convex substrate: 2mm
-
Min. curvature radius of concave substrate: 11mm
-
Power supply: 2*1.5V AAA batteries(not included)
-
Operating temperature range: 0~40℃
-
Operating humidity range: 10~95%RH
Package included:
- 1 x Coating Thickness Gauge
- 1 x Plastic Box
- 6 x Calibration Films
- 1 x Iron Base
- 1 x English and Chinese User Manual
Specifications
Brand | N/A |
---|---|
Retail Packaging | Colored Box |
User Manual (Language) | English and Chinese |
Gross Weight | 0.739kg |
Volume Weight | 0.804kg |
Package Length | 26.700cm |
Package Width | 21.000cm |
Package Height | 6.400cm |
One Package Weight | 0.660kg |
With Retail Packaging | Yes |
