AY113 Optical Coaxial Adapter Digital to Analog DAC Audio Converter with Volume Control Knob

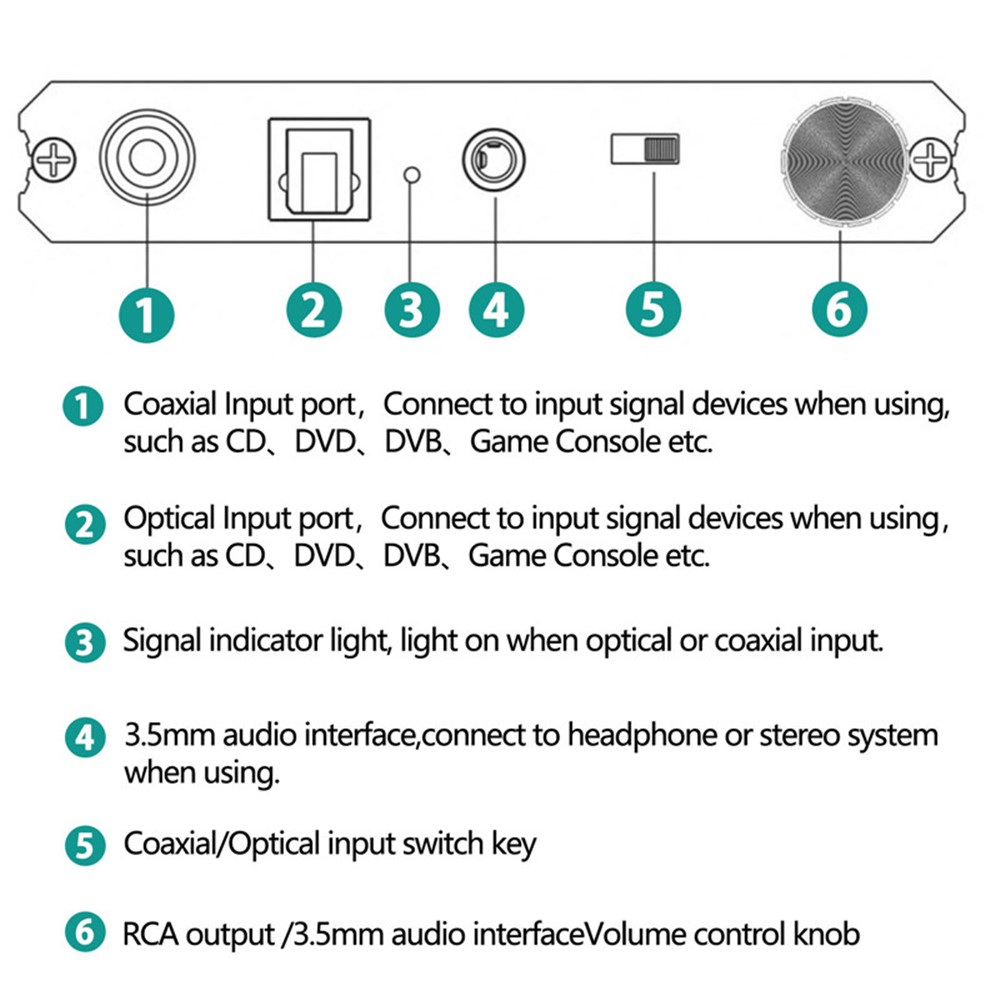

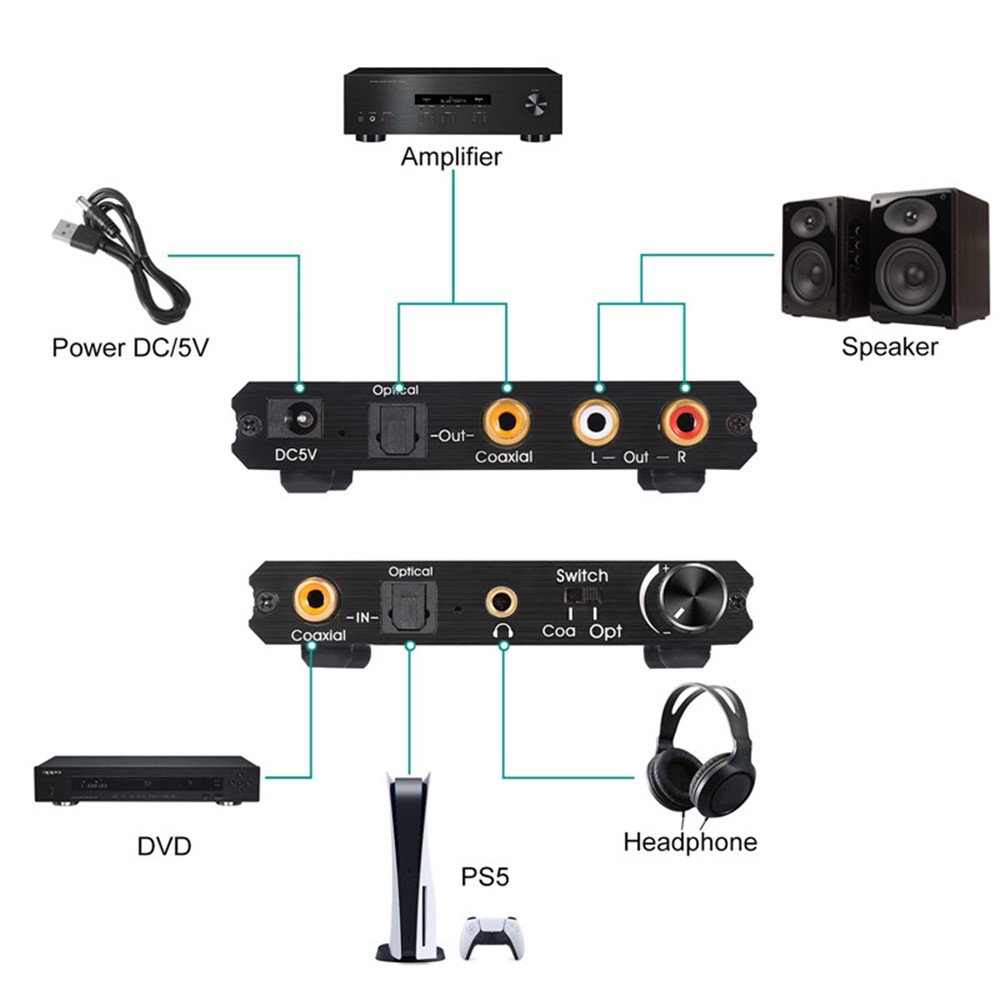

• Supports 1 optical and 1 coaxial input, which can be switched by button
• Support volume control (only control RCA audio and 3.5mm audio output)

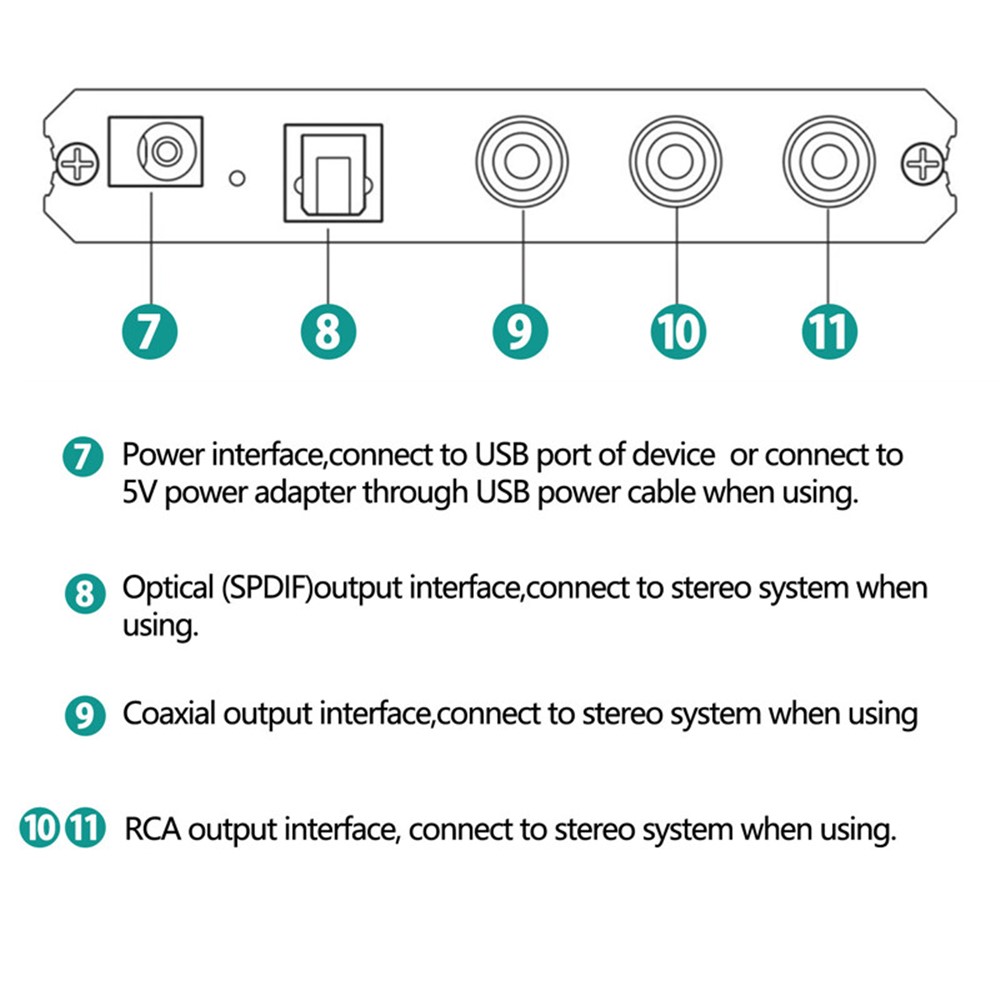

• Supports optical input to 1 optical output and 1 coaxial output
• Supports coaxial input to 1 optical output and 1 coaxial output
• Supports connection to 600Ω high impedance headphones
• Supports 192khz 24-bit sample rate
• Ultra-low power consumption, metal shell design, good anti-interference

Specifications:

• Audio sampling rate: 32~192K
• RCA output maximum level: 8Vp-p
• 3.5mm audio interface maximum output level: 6.5Vp-p
• 3.5mm audio port maximum output power: 32Ω30mW
• Maximum operating current: 5V/50mA
• Working environment temperature: -10~+55 degrees Celsius
• Storage ambient temperature: -26~+60 degrees Celsius
• Working environment humidity: relative humidity 10-90% (non-condensing)
• Storage environment humidity: relative humidity 5~95% (non-condensing)
• Dimensions: 100x95x20mm
• Shell material: aluminum alloy
